新户留存率预估¶

1. 项目背景¶

拿到新用户的留存数据及几个主要特征。

在常规操作下，数据分析师会给出单因素对留存的影响（比如，某渠道的用户留存更高），他们使用的方法可能就是分组对比。但是，这种方法有一些缺点：

• 当数据比较复杂时，比如离散特征，分组去比对过程繁琐
• 无法看到多个因素的组合效应

如果使用GBDT建模留存率，可以解决这些问题。但是，模型虽然可以输出预估分数，但是无法输出可解释的规则。比如“小米手机的游戏渠道用户留存率高”，这样才可以制定产品策略（或者说，写PPT）。

如何使用GBDT输出可解释的规则，这是任务的难点所在。

2. 数据处理¶

In [ ]:

import os
import pandas as pd
import lightgbm as lgb
import matplotlib.pyplot as plt
import dtreeviz
from sklearn.model_selection import train_test_split
from sklearn.metrics import confusion_matrix, classification_report

import os import pandas as pd import lightgbm as lgb import matplotlib.pyplot as plt import dtreeviz from sklearn.model_selection import train_test_split from sklearn.metrics import confusion_matrix, classification_report

In [2]:

# load titanic dataset from lightgbm
dataset = pd.read_csv("../uncommitted/yandi_bigdata_vf_guest_user_sample_tree6", sep='\t')
dataset.head()

# load titanic dataset from lightgbm dataset = pd.read_csv("../uncommitted/yandi_bigdata_vf_guest_user_sample_tree6", sep='\t') dataset.head()

Out[2]:

	uid	source3	city	expo_time	device	dt	pt
0	1008792189321	自然点击	北京	11	apple	working6	0
1	1008901220	厂商_内容合作	十堰	9	apple	working6	0
2	1009047004691	自然点击	温州	0	huawei	working6	0
3	1009146331245	自然点击	宝鸡	14	huawei	working6	0
4	1009433523553	自然点击	郑州	13	huawei	working6	0

数据含义：

• pt：是否留存
• expo_time：曝光时刻的hour，取值0-24的整数
• source3: 投放的渠道商
• device: 用户手机类型
• city: 所在城市

对数据进行数值化处理，将字符串类型的数据转换为数值类型，方便后续建模。类似于sklearn.preprocessing.LabelEncoder，在pandas中使用factorize方法。

In [3]:

feature_names = {}
category_columns = ["source3", "city", "device"]
for column in category_columns:
  dataset[column], feature_name = dataset[column].factorize()
  feature_names[column] = feature_name
int_columns = []
for column in int_columns:
  dataset[column].fillna(-1, inplace=True)
print(dataset[category_columns].head(10))
print(feature_names)

feature_names = {} category_columns = ["source3", "city", "device"] for column in category_columns: dataset[column], feature_name = dataset[column].factorize() feature_names[column] = feature_name int_columns = [] for column in int_columns: dataset[column].fillna(-1, inplace=True) print(dataset[category_columns].head(10)) print(feature_names)

   source3  city  device
0        0     0       0
1        1     1       0
2        0     2       1
3        0     3       1
4        0     4       1
5        0     5       2
6        0     6       0
7        0     7       2
8        0     8       1
9        0     9       2
{'source3': Index(['自然点击', '厂商_内容合作', '合作PUSH', '社交', '兴趣', '开放平台', '厂商', '游戏', '运营商',
       '大型APP_合作', '程序化_人工', '线上第三方', '运营热点', '消息互动', '游戏SDK', '程序化', '未报备',
       '预装PUSH'],
      dtype='object'), 'city': Index(['北京', '十堰', '温州', '宝鸡', '郑州', '揭阳', '济南', '汕头', '海口', '福州',
       ...
       '甘南', '阿坝', '阿拉善盟', '阿里', '济源', '黄南', '海南', '潜江', '阿拉尔', '五家渠'],
      dtype='object', length=352), 'device': Index(['apple', 'huawei', 'oppo', 'xiaomi', 'vivo', 'blackshark', 'doov',
       'samsung', 'realme', 'honor',
       ...
       'ibasso', 'caltta technologies', 'ysd', 'zhishifangzhou', 'acer',
       'saifl', 'hytera', 'intel', 'z7s', 'wiz'],
      dtype='object', length=744)}

词典列表很长，由于是数据分析向，只分析头部值就可以了

In [4]:

# keep topk indices of devices
index = dataset.device.value_counts().iloc[:20].index
dataset["device"] = dataset.device.apply(lambda x: x if x in index else -1)

# keep topk indices of devices index = dataset.device.value_counts().iloc[:20].index dataset["device"] = dataset.device.apply(lambda x: x if x in index else -1)

In [5]:

index = dataset.city.value_counts().iloc[:20].index
dataset["city"] = dataset.city.apply(lambda x: x if x in index else -1)

index = dataset.city.value_counts().iloc[:20].index dataset["city"] = dataset.city.apply(lambda x: x if x in index else -1)

In [6]:

category_columns = ["source3", "device", "city"]
int_columns = ["expo_time",]
target_column = "pt"
feature_columns = category_columns + int_columns

dataset = dataset[feature_columns + [target_column]]

category_columns = ["source3", "device", "city"] int_columns = ["expo_time",] target_column = "pt" feature_columns = category_columns + int_columns dataset = dataset[feature_columns + [target_column]]

In [7]:

dataset.pt.value_counts()

dataset.pt.value_counts()

Out[7]:

0    7138497
1    5509182
Name: pt, dtype: int64

In [8]:

dataset = dataset.dropna()

dataset = dataset.dropna()

In [9]:

# dataset = dataset.astype({target_column: "int"})
# for column in category_columns:
#   dataset = dataset.astype({column: "category"})

# dataset = dataset.astype({target_column: "int"}) # for column in category_columns: # dataset = dataset.astype({column: "category"})

In [10]:

f_city = pd.DataFrame(dataset.city.value_counts())
f_city["city_name"] = f_city.index.map(lambda x: feature_names["city"][x] if x!=-1 else "others")
f_city

f_city = pd.DataFrame(dataset.city.value_counts()) f_city["city_name"] = f_city.index.map(lambda x: feature_names["city"][x] if x!=-1 else "others") f_city

Out[10]:

	city	city_name
-1	7691491	others
0	1312280	北京
40	341369	上海
25	311106	重庆
65	305374	广州
41	284482	成都
77	229453	武汉
4	202350	郑州
48	196921	深圳
62	190219	西安
33	185553	南京
43	170546	石家庄
17	166554	杭州
19	163369	天津
6	159692	济南
55	134339	长沙
84	127452	青岛
15	125977	济宁
38	120150	临沂
101	118926	苏州
99	110076	合肥

In [11]:

f_device = pd.DataFrame(dataset.device.value_counts())
f_device["device_name"] = f_device.index.map(lambda x: feature_names["device"][x] if x!=-1 else "others")
f_device

f_device = pd.DataFrame(dataset.device.value_counts()) f_device["device_name"] = f_device.index.map(lambda x: feature_names["device"][x] if x!=-1 else "others") f_device

Out[11]:

	device	device_name
0	3862458	apple
1	2593778	huawei
4	2004773	vivo
3	1532903	xiaomi
2	1285823	oppo
9	656446	honor
8	181392	realme
7	134811	samsung
10	130585	oneplus
-1	63268	others
12	44254	ptac
21	39576	lenovo
20	25974	meizu
16	21770	cmdc
22	15819	tianyi
14	11047	motorola
13	10204	liantong
5	9562	blackshark
27	7794	tdtech
15	7735	zte
18	7707	nubia

In [12]:

f_source3 = pd.DataFrame(dataset.source3.value_counts())
f_source3["source3_name"] = f_source3.index.map(lambda x: feature_names["source3"][x] if x!=-1 else "others")
f_source3

f_source3 = pd.DataFrame(dataset.source3.value_counts()) f_source3["source3_name"] = f_source3.index.map(lambda x: feature_names["source3"][x] if x!=-1 else "others") f_source3

Out[12]:

	source3	source3_name
0	11370017	自然点击
1	406083	厂商_内容合作
9	199252	大型APP_合作
2	158372	合作PUSH
7	141909	游戏
5	112316	开放平台
3	56852	社交
8	49020	运营商
11	48090	线上第三方
4	41754	兴趣
12	26107	运营热点
13	10335	消息互动
10	9575	程序化_人工
14	7301	游戏SDK
15	4420	程序化
6	3576	厂商
-1	2233	others
16	464	未报备
17	3	预装PUSH

3. 建立决策树¶

In [13]:

data = lgb.Dataset(dataset[feature_columns],
      label=dataset[target_column],
      feature_name=feature_columns,
      categorical_feature=category_columns,
      free_raw_data=False
      )

data = lgb.Dataset(dataset[feature_columns], label=dataset[target_column], feature_name=feature_columns, categorical_feature=category_columns, free_raw_data=False )

In [14]:

param = {
    'boosting_type': 'dart',
    'objective': 'binary',
    'metric': ['binary_logloss', "auc"],
    'num_leaves': 10,
    'learning_rate': 0.5,
    'feature_fraction': 0.8,
    'max_depth':4,
    'min_data_in_leaf': 3000,
    "min_data_per_group": 1000,
    'verbose': 0,
}

param = { 'boosting_type': 'dart', 'objective': 'binary', 'metric': ['binary_logloss', "auc"], 'num_leaves': 10, 'learning_rate': 0.5, 'feature_fraction': 0.8, 'max_depth':4, 'min_data_in_leaf': 3000, "min_data_per_group": 1000, 'verbose': 0, }

In [15]:

num_round = 10

num_round = 10

cv交叉验证已经内置了，都不用自己划分，可以用来调参，但是由于数据量较小，这里直接用默认参数建立决策树。

In [16]:

lgb.cv(param, data, num_round, nfold=5)

lgb.cv(param, data, num_round, nfold=5)

/data0/users/yandi/project/user_dim_reduction/.venv/lib/python3.7/site-packages/lightgbm/basic.py:2065: UserWarning: Using categorical_feature in Dataset.

[LightGBM] [Warning] Met negative value in categorical features, will convert it to NaN
[LightGBM] [Warning] Met negative value in categorical features, will convert it to NaN
[LightGBM] [Warning] Met negative value in categorical features, will convert it to NaN
[LightGBM] [Warning] Auto-choosing row-wise multi-threading, the overhead of testing was 0.039645 seconds.
You can set `force_row_wise=true` to remove the overhead.
And if memory is not enough, you can set `force_col_wise=true`.
[LightGBM] [Warning] Auto-choosing row-wise multi-threading, the overhead of testing was 0.039653 seconds.
You can set `force_row_wise=true` to remove the overhead.
And if memory is not enough, you can set `force_col_wise=true`.
[LightGBM] [Warning] Auto-choosing row-wise multi-threading, the overhead of testing was 0.039339 seconds.
You can set `force_row_wise=true` to remove the overhead.
And if memory is not enough, you can set `force_col_wise=true`.
[LightGBM] [Warning] Auto-choosing row-wise multi-threading, the overhead of testing was 0.044530 seconds.
You can set `force_row_wise=true` to remove the overhead.
And if memory is not enough, you can set `force_col_wise=true`.
[LightGBM] [Warning] Auto-choosing row-wise multi-threading, the overhead of testing was 0.040019 seconds.
You can set `force_row_wise=true` to remove the overhead.
And if memory is not enough, you can set `force_col_wise=true`.

Out[16]:

{'binary_logloss-mean': [0.6611806137789256,
  0.6483566573409874,
  0.6404597771659992,
  0.6385914070333497,
  0.6367117987529956,
  0.6359197156939506,
  0.6356236439452655,
  0.636605771025251,
  0.6364385653294171,
  0.6363157134427969],
 'binary_logloss-stdv': [5.229218689134398e-05,
  5.5011081201943883e-05,
  8.224705563347412e-05,
  9.837604266465201e-05,
  0.00010706421224167403,
  0.00016609106057672847,
  0.00015859042212779795,
  0.00013722531248463153,
  0.00012994185470165104,
  0.0001221683993274359],
 'auc-mean': [0.640303475177552,
  0.6608994915882134,
  0.666050028475772,
  0.6672431281779567,
  0.6680580318063558,
  0.6682714793676438,
  0.6687496142214466,
  0.668521727769987,
  0.668657710774117,
  0.6688400349973666],
 'auc-stdv': [0.00022117752433973458,
  0.0001829753917785809,
  0.00020077043000291448,
  0.00025607071453552505,
  0.00024811254813978555,
  0.0002578193120040691,
  0.00031748834012006644,
  0.00027790596220326043,
  0.00026362820616253444,
  0.00019591119864766687]}

In [17]:

train_index, valid_index = train_test_split(dataset.index, test_size=0.2, random_state=42)

train_index, valid_index = train_test_split(dataset.index, test_size=0.2, random_state=42)

In [18]:

train_data = lgb.Dataset(dataset.loc[train_index][feature_columns],
      label=dataset.loc[train_index][target_column],
      feature_name=feature_columns,
      categorical_feature=category_columns,
      free_raw_data=False
      )
valid_data = lgb.Dataset(dataset.loc[valid_index][feature_columns],
      label=dataset.loc[valid_index][target_column],
      feature_name=feature_columns,
      categorical_feature=category_columns,
      free_raw_data=False
      ).construct()

train_data = lgb.Dataset(dataset.loc[train_index][feature_columns], label=dataset.loc[train_index][target_column], feature_name=feature_columns, categorical_feature=category_columns, free_raw_data=False ) valid_data = lgb.Dataset(dataset.loc[valid_index][feature_columns], label=dataset.loc[valid_index][target_column], feature_name=feature_columns, categorical_feature=category_columns, free_raw_data=False ).construct()

[LightGBM] [Warning] Met negative value in categorical features, will convert it to NaN
[LightGBM] [Warning] Met negative value in categorical features, will convert it to NaN
[LightGBM] [Warning] Met negative value in categorical features, will convert it to NaN

In [19]:

gbm = lgb.train(param, train_data, num_round)

gbm = lgb.train(param, train_data, num_round)

/data0/users/yandi/project/user_dim_reduction/.venv/lib/python3.7/site-packages/lightgbm/basic.py:2065: UserWarning: Using categorical_feature in Dataset.

[LightGBM] [Warning] Met negative value in categorical features, will convert it to NaN
[LightGBM] [Warning] Met negative value in categorical features, will convert it to NaN
[LightGBM] [Warning] Met negative value in categorical features, will convert it to NaN
[LightGBM] [Warning] Auto-choosing row-wise multi-threading, the overhead of testing was 0.040152 seconds.
You can set `force_row_wise=true` to remove the overhead.
And if memory is not enough, you can set `force_col_wise=true`.

In [20]:

lgb.plot_importance(gbm, importance_type="gain", figsize=(10, 10))

lgb.plot_importance(gbm, importance_type="gain", figsize=(10, 10))

Out[20]:

<AxesSubplot:title={'center':'Feature importance'}, xlabel='Feature importance', ylabel='Features'>

In [21]:

# 可视化第一棵树
for i in range(3):
  fig, ax = plt.subplots(figsize=(30, 30))
  lgb.plot_tree(gbm, tree_index=i, ax=ax, orientation="horizontal", show_info=["split_gain", "internal_count", "data_percentage", "leaf_count"])
  plt.show()

# 可视化第一棵树 for i in range(3): fig, ax = plt.subplots(figsize=(30, 30)) lgb.plot_tree(gbm, tree_index=i, ax=ax, orientation="horizontal", show_info=["split_gain", "internal_count", "data_percentage", "leaf_count"]) plt.show()

In [22]:

sub_dataset = dataset.sample(10000)
viz_model = dtreeviz.model(
    gbm,
    sub_dataset[feature_columns],
    sub_dataset[target_column],
    tree_index = 0,
    target_name=target_column,
    feature_names=feature_columns,
    class_names=["Dead", "Survived"],

)

sub_dataset = dataset.sample(10000) viz_model = dtreeviz.model( gbm, sub_dataset[feature_columns], sub_dataset[target_column], tree_index = 0, target_name=target_column, feature_names=feature_columns, class_names=["Dead", "Survived"], )

In [23]:

viz_model.view(orientation="LR")

viz_model.view(orientation="LR")

findfont: Font family ['Arial'] not found. Falling back to DejaVu Sans.
findfont: Font family ['Arial'] not found. Falling back to DejaVu Sans.
findfont: Font family ['Arial'] not found. Falling back to DejaVu Sans.
findfont: Font family ['Arial'] not found. Falling back to DejaVu Sans.
findfont: Font family ['Arial'] not found. Falling back to DejaVu Sans.

Out[23]:

In [24]:

viz_model.view(fancy=False)

viz_model.view(fancy=False)

Out[24]:

In [25]:

viz_model.view(x=dataset.loc[3], show_just_path=True)

viz_model.view(x=dataset.loc[3], show_just_path=True)

Out[25]:

In [26]:

viz_model.ctree_leaf_distributions()

viz_model.ctree_leaf_distributions()

In [27]:

y_pred = gbm.predict(dataset.loc[valid_index][feature_columns])
confusion_matrix(y_pred>0.5, dataset.loc[valid_index][target_column])

y_pred = gbm.predict(dataset.loc[valid_index][feature_columns]) confusion_matrix(y_pred>0.5, dataset.loc[valid_index][target_column])

Out[27]:

array([[1178483,  688089],
       [ 248999,  413965]])

In [28]:

print(classification_report(dataset.loc[valid_index][target_column], y_pred>0.5))

print(classification_report(dataset.loc[valid_index][target_column], y_pred>0.5))

              precision    recall  f1-score   support

           0       0.63      0.83      0.72   1427482
           1       0.62      0.38      0.47   1102054

    accuracy                           0.63   2529536
   macro avg       0.63      0.60      0.59   2529536
weighted avg       0.63      0.63      0.61   2529536

4. 模型解释¶

本小节主要是对模型的解释，可以看到expo_time和source3是最重要的特征，device和city的重要性较低。但是还不够，希望知道特征组合，是怎么影响留存的。

这里的想法是，GBDT的根节点的值如果为正数，说明这个特征对留存有正向影响，如果为负数，说明这个特征对留存有负向影响。

但是如果去看路径，就会比较迷惑，都是特征和阈值的组合，不好解释。这里的方法是，分析根节点中特征是怎么组合的（统计特征值出现的占比），就可以得到特征组合的影响。

In [29]:

def describe_cat(df, target_column, feature_names=None, topK=5, min_ratio=0.01):
  """ 对指定数据集进行人群画像描述
  例如，给定一个df，包含了用户的年龄、性别、收入、消费能力等特征，可以通过Descriptor来描述这个人群的特征
  Args:
  df: 数据集
  target_column: 目标列
  feature_names: 特征名称
  topK: 取topK个类别
  ratio: 取占比大于ratio的类别
  Returns:
  feat: 人群画像
  """
  # 计算各个类别的占比
  f = pd.DataFrame({"cnt": df[target_column].value_counts()})
  if feature_names is not None:
    f["name"] = f.index.map(lambda x: feature_names[x] if x!=-1 else "others")
  f["ratio"] = f["cnt"] / f["cnt"].sum()
  f = f.sort_values("ratio", ascending=False)
  f = f[f.ratio > min_ratio].iloc[:topK]
  # concat index with name, ratio
  if feature_names is not None:
    f = f.index.astype(str) + "@" + f["name"] + "@" + f["ratio"].round(2).astype(str)
  else:
    f = f.index.astype(str) + "@" + f["ratio"].round(2).astype(str)
  f = f.str.cat(sep="|")
  return f

def describe_int(df, target_column):
  """ 对指定数据集进行人群画像描述
  例如，给定一个df，包含了用户的年龄、性别、收入、消费能力等特征，可以通过Descriptor来描述这个人群的特征
  Args:
  df: 数据集
  target_column: 目标列
  Returns:
  feat: 人群画像
  """
  # 计算数值型特征的分布
  f = df[target_column].describe()
  f = f.index.astype(str) + "@" + f.round(2).astype(str)
  f = f.str.cat(sep="|")
  return f

def describe_cat(df, target_column, feature_names=None, topK=5, min_ratio=0.01): """ 对指定数据集进行人群画像描述 例如，给定一个df，包含了用户的年龄、性别、收入、消费能力等特征，可以通过Descriptor来描述这个人群的特征 Args: df: 数据集 target_column: 目标列 feature_names: 特征名称 topK: 取topK个类别 ratio: 取占比大于ratio的类别 Returns: feat: 人群画像 """ # 计算各个类别的占比 f = pd.DataFrame({"cnt": df[target_column].value_counts()}) if feature_names is not None: f["name"] = f.index.map(lambda x: feature_names[x] if x!=-1 else "others") f["ratio"] = f["cnt"] / f["cnt"].sum() f = f.sort_values("ratio", ascending=False) f = f[f.ratio > min_ratio].iloc[:topK] # concat index with name, ratio if feature_names is not None: f = f.index.astype(str) + "@" + f["name"] + "@" + f["ratio"].round(2).astype(str) else: f = f.index.astype(str) + "@" + f["ratio"].round(2).astype(str) f = f.str.cat(sep="|") return f def describe_int(df, target_column): """ 对指定数据集进行人群画像描述 例如，给定一个df，包含了用户的年龄、性别、收入、消费能力等特征，可以通过Descriptor来描述这个人群的特征 Args: df: 数据集 target_column: 目标列 Returns: feat: 人群画像 """ # 计算数值型特征的分布 f = df[target_column].describe() f = f.index.astype(str) + "@" + f.round(2).astype(str) f = f.str.cat(sep="|") return f

In [30]:

# construct path to leaf from tree
def get_path_to_leaf(tree, tree_index, leaf_index):
  """ get path to leaf from tree
  Args:
  tree: tree dataframe
  tree_index: tree index
  leaf_index: leaf index
  Returns:
  path: path to leaf
  """
  path = []
  node_index = leaf_index
  while True:
    row = tree[(tree.tree_index==tree_index) & (tree.node_index==node_index)]
    if len(row) == 0:
      break
    path.append(node_index)
    node_index = row.parent_index.values[0]
  path = path[::-1]
  return path

# construct decision path from tree and path
def get_decision_path(tree, path):
  """ get decision path from tree and path
  Args:
  tree: tree dataframe
  path: path to leaf
  Returns:
  path: decision path
  """
  decisions = []
  for i in range(0, len(path) - 1):
    parent, child = path[i: i+2]
    row = tree[tree.node_index==parent]
    if row.left_child.values[0] == child:
      direction = 1
    else:
      direction = 0
    split_reason = row.split_feature.values[0] \
      + row.decision_type.values[0] \
      + str(row.threshold.values[0]) \
      + ":" + str(direction)
    decisions.append(split_reason)
  return decisions

# get tree stat, order by value_norm
def get_tree_stat(gbm, tree_index):
  tree = gbm.trees_to_dataframe()
  tree = tree[tree.tree_index == tree_index]
  tree["path"] = tree["node_index"].apply(lambda x: ",".join(get_path_to_leaf(tree, tree_index, x)))
  tree["decision"] = tree["path"].apply(lambda x: ",".join(get_decision_path(tree, x.split(","))))
  tree["node"] = tree["node_index"].apply(lambda x: int(x.split("-L")[1]) if "-L" in x else -1)
  tree = tree[tree["node"] > -1]
  tree["value_norm"] = tree.value - tree.value.mean()
  tree = tree.sort_values("value_norm", ascending=False)
  tree.set_index("node", inplace=True)
  keep_cols = ["tree_index", "node_index", "value", "path", "decision", "value_norm"]
  tree = tree[keep_cols]
  return tree

# construct path to leaf from tree def get_path_to_leaf(tree, tree_index, leaf_index): """ get path to leaf from tree Args: tree: tree dataframe tree_index: tree index leaf_index: leaf index Returns: path: path to leaf """ path = [] node_index = leaf_index while True: row = tree[(tree.tree_index==tree_index) & (tree.node_index==node_index)] if len(row) == 0: break path.append(node_index) node_index = row.parent_index.values[0] path = path[::-1] return path # construct decision path from tree and path def get_decision_path(tree, path): """ get decision path from tree and path Args: tree: tree dataframe path: path to leaf Returns: path: decision path """ decisions = [] for i in range(0, len(path) - 1): parent, child = path[i: i+2] row = tree[tree.node_index==parent] if row.left_child.values[0] == child: direction = 1 else: direction = 0 split_reason = row.split_feature.values[0] \ + row.decision_type.values[0] \ + str(row.threshold.values[0]) \ + ":" + str(direction) decisions.append(split_reason) return decisions # get tree stat, order by value_norm def get_tree_stat(gbm, tree_index): tree = gbm.trees_to_dataframe() tree = tree[tree.tree_index == tree_index] tree["path"] = tree["node_index"].apply(lambda x: ",".join(get_path_to_leaf(tree, tree_index, x))) tree["decision"] = tree["path"].apply(lambda x: ",".join(get_decision_path(tree, x.split(",")))) tree["node"] = tree["node_index"].apply(lambda x: int(x.split("-L")[1]) if "-L" in x else -1) tree = tree[tree["node"] > -1] tree["value_norm"] = tree.value - tree.value.mean() tree = tree.sort_values("value_norm", ascending=False) tree.set_index("node", inplace=True) keep_cols = ["tree_index", "node_index", "value", "path", "decision", "value_norm"] tree = tree[keep_cols] return tree

In [32]:

sample = valid_data.data.copy()
sample["pt"] = valid_data.get_label()

sample = valid_data.data.copy() sample["pt"] = valid_data.get_label()

In [33]:

# 获得每行数据对应的叶子节点编号，例如，五棵树就是，[29,  2,  8, 26,  2]
embeddings = gbm.predict(valid_data.get_data(), pred_leaf=True)

# 获得每行数据对应的叶子节点编号，例如，五棵树就是，[29, 2, 8, 26, 2] embeddings = gbm.predict(valid_data.get_data(), pred_leaf=True)

In [34]:

tree_index = [0, 1]

tree_index = [0, 1]

In [35]:

leaf_cnt = pd.DataFrame({"cnt": pd.DataFrame(embeddings[:,tree_index]).value_counts()})

leaf_cnt = pd.DataFrame({"cnt": pd.DataFrame(embeddings[:,tree_index]).value_counts()})

In [36]:

tree_stat = {}
for i in tree_index:
  tree_stat[i] = get_tree_stat(gbm, i)
tree_stat[0]

tree_stat = {} for i in tree_index: tree_stat[i] = get_tree_stat(gbm, i) tree_stat[0]

Out[36]:

	tree_index	node_index	value	path	decision	value_norm
node
0	0	0-L0	0.278742	0-S0,0-S2,0-S3,0-L0	expo_time<=8.500000000000002:1,device==0||1||3...	0.455888
5	0	0-L5	0.151277	0-S0,0-S2,0-S3,0-S4,0-L5	expo_time<=8.500000000000002:1,device==0||1||3...	0.328423
3	0	0-L3	0.003205	0-S0,0-S2,0-S6,0-L3	expo_time<=8.500000000000002:1,device==0||1||3...	0.180352
4	0	0-L4	-0.094405	0-S0,0-S2,0-S3,0-S4,0-L4	expo_time<=8.500000000000002:1,device==0||1||3...	0.082742
1	0	0-L1	-0.115240	0-S0,0-S1,0-S5,0-L1	expo_time<=8.500000000000002:0,device==0||1||3...	0.061906
6	0	0-L6	-0.221240	0-S0,0-S1,0-S5,0-S7,0-L6	expo_time<=8.500000000000002:0,device==0||1||3...	-0.044093
7	0	0-L7	-0.318670	0-S0,0-S2,0-S6,0-L7	expo_time<=8.500000000000002:1,device==0||1||3...	-0.141524
8	0	0-L8	-0.337693	0-S0,0-S1,0-S5,0-S7,0-L8	expo_time<=8.500000000000002:0,device==0||1||3...	-0.160546
9	0	0-L9	-0.495727	0-S0,0-S1,0-S8,0-L9	expo_time<=8.500000000000002:0,device==0||1||3...	-0.318580
2	0	0-L2	-0.621714	0-S0,0-S1,0-S8,0-L2	expo_time<=8.500000000000002:0,device==0||1||3...	-0.444568

这个表可以告诉我们，第一棵树的所有根节点，节点路径，及对应的提升值是负还是正（提升值是绝对值减去样本的均值）。接下来统计，每个节点上的特征值出现的占比。

In [37]:

from collections import defaultdict
feature_stat = defaultdict(dict)
for i_node, cnt in leaf_cnt.iterrows():
  subsample = sample[(embeddings[:, tree_index] == i_node).all(axis=1)]
  feature_stat[i_node] = {
    "tree_index": tree_index,
    "node": i_node,
    "path": "@@@".join([tree_stat[i].loc[j]["path"] for i, j in enumerate(i_node)]),
    "decision": "@@@".join([tree_stat[i].loc[j]["decision"] for i, j in enumerate(i_node)]),
    "value_norm": round(sum(tree_stat[i].loc[j]["value_norm"] for i, j in enumerate(i_node)), 2),
    "value": round(sum(tree_stat[i].loc[j]["value"] for i, j in enumerate(i_node)), 2),
    "cnt": leaf_cnt["cnt"][i_node],
    "ratio": (leaf_cnt["cnt"][i_node] / leaf_cnt["cnt"].sum()).round(2),
    "device": describe_cat(subsample, "device", feature_names=feature_names["device"]),
    "city": describe_cat(subsample, "city", feature_names=feature_names["city"]),
    "expo_time": describe_cat(subsample, "expo_time"),
    "expo_time_sta": describe_int(subsample, "expo_time"),
    "pt_cat": describe_cat(subsample, "pt"),
    "source3": describe_cat(subsample, "source3", feature_names=feature_names["source3"]),
    }
feature_stat

from collections import defaultdict feature_stat = defaultdict(dict) for i_node, cnt in leaf_cnt.iterrows(): subsample = sample[(embeddings[:, tree_index] == i_node).all(axis=1)] feature_stat[i_node] = { "tree_index": tree_index, "node": i_node, "path": "@@@".join([tree_stat[i].loc[j]["path"] for i, j in enumerate(i_node)]), "decision": "@@@".join([tree_stat[i].loc[j]["decision"] for i, j in enumerate(i_node)]), "value_norm": round(sum(tree_stat[i].loc[j]["value_norm"] for i, j in enumerate(i_node)), 2), "value": round(sum(tree_stat[i].loc[j]["value"] for i, j in enumerate(i_node)), 2), "cnt": leaf_cnt["cnt"][i_node], "ratio": (leaf_cnt["cnt"][i_node] / leaf_cnt["cnt"].sum()).round(2), "device": describe_cat(subsample, "device", feature_names=feature_names["device"]), "city": describe_cat(subsample, "city", feature_names=feature_names["city"]), "expo_time": describe_cat(subsample, "expo_time"), "expo_time_sta": describe_int(subsample, "expo_time"), "pt_cat": describe_cat(subsample, "pt"), "source3": describe_cat(subsample, "source3", feature_names=feature_names["source3"]), } feature_stat

Out[37]:

defaultdict(dict,
            {(8, 3): {'tree_index': [0, 1],
              'node': (8, 3),
              'path': '0-S0,0-S1,0-S5,0-S7,0-L8@@@1-S0,1-S1,1-S2,1-S4,1-L3',
              'decision': 'expo_time<=8.500000000000002:0,device==0||1||3||7||20:1,expo_time<=10.500000000000002:0,device==0:0@@@source3==1||2||5||6||7||9||11||14||16:0,device==4||5||14||18||21:0,device==2||7||8||10||15||16||22||27:0,source3==0||10:1',
              'value_norm': 0.03,
              'value': -0.28,
              'cnt': 449657,
              'ratio': 0.18,
              'device': '1@huawei@0.64|3@xiaomi@0.35',
              'city': '-1@others@0.61|0@北京@0.09|25@重庆@0.03|40@上海@0.03|65@广州@0.02',
              'expo_time': '22@0.09|21@0.08|12@0.08|11@0.08|23@0.08',
              'expo_time_sta': 'count@449657.0|mean@17.08|std@3.81|min@11.0|25%@14.0|50%@17.0|75%@20.0|max@23.0',
              'pt_cat': '0.0@0.58|1.0@0.42',
              'source3': '0@自然点击@1.0'},
             (6, 3): {'tree_index': [0, 1],
              'node': (6, 3),
              'path': '0-S0,0-S1,0-S5,0-S7,0-L6@@@1-S0,1-S1,1-S2,1-S4,1-L3',
              'decision': 'expo_time<=8.500000000000002:0,device==0||1||3||7||20:1,expo_time<=10.500000000000002:0,device==0:1@@@source3==1||2||5||6||7||9||11||14||16:0,device==4||5||14||18||21:0,device==2||7||8||10||15||16||22||27:0,source3==0||10:1',
              'value_norm': 0.14,
              'value': -0.16,
              'cnt': 446155,
              'ratio': 0.18,
              'device': '0@apple@1.0',
              'city': '-1@others@0.58|0@北京@0.1|40@上海@0.04|41@成都@0.03|65@广州@0.03',
              'expo_time': '22@0.09|23@0.09|21@0.08|12@0.08|11@0.08',
              'expo_time_sta': 'count@446155.0|mean@17.13|std@3.84|min@11.0|25%@14.0|50%@17.0|75%@21.0|max@23.0',
              'pt_cat': '0.0@0.55|1.0@0.45',
              'source3': '0@自然点击@1.0'},
             (2, 5): {'tree_index': [0, 1],
              'node': (2, 5),
              'path': '0-S0,0-S1,0-S8,0-L2@@@1-S0,1-S1,1-S2,1-S4,1-L5',
              'decision': 'expo_time<=8.500000000000002:0,device==0||1||3||7||20:0,device==4||5||13||15||16||18||22||27:1@@@source3==1||2||5||6||7||9||11||14||16:0,device==4||5||14||18||21:0,device==2||7||8||10||15||16||22||27:0,source3==0||10:0',
              'value_norm': -0.07,
              'value': -0.37,
              'cnt': 17,
              'ratio': 0.0,
              'device': '13@liantong@1.0',
              'city': '-1@others@0.76|0@北京@0.12|4@郑州@0.06|65@广州@0.06',
              'expo_time': '19@0.35|18@0.18|14@0.12|13@0.12|10@0.06',
              'expo_time_sta': 'count@17.0|mean@16.12|std@3.69|min@9.0|25%@13.0|50%@18.0|75%@19.0|max@21.0',
              'pt_cat': '0.0@0.65|1.0@0.35',
              'source3': '8@运营商@0.41|12@运营热点@0.29|4@兴趣@0.24|3@社交@0.06'}})

In [38]:

df = pd.DataFrame(feature_stat).T
df = df.sort_values("value", ascending=False)

df = pd.DataFrame(feature_stat).T df = df.sort_values("value", ascending=False)

In [39]:

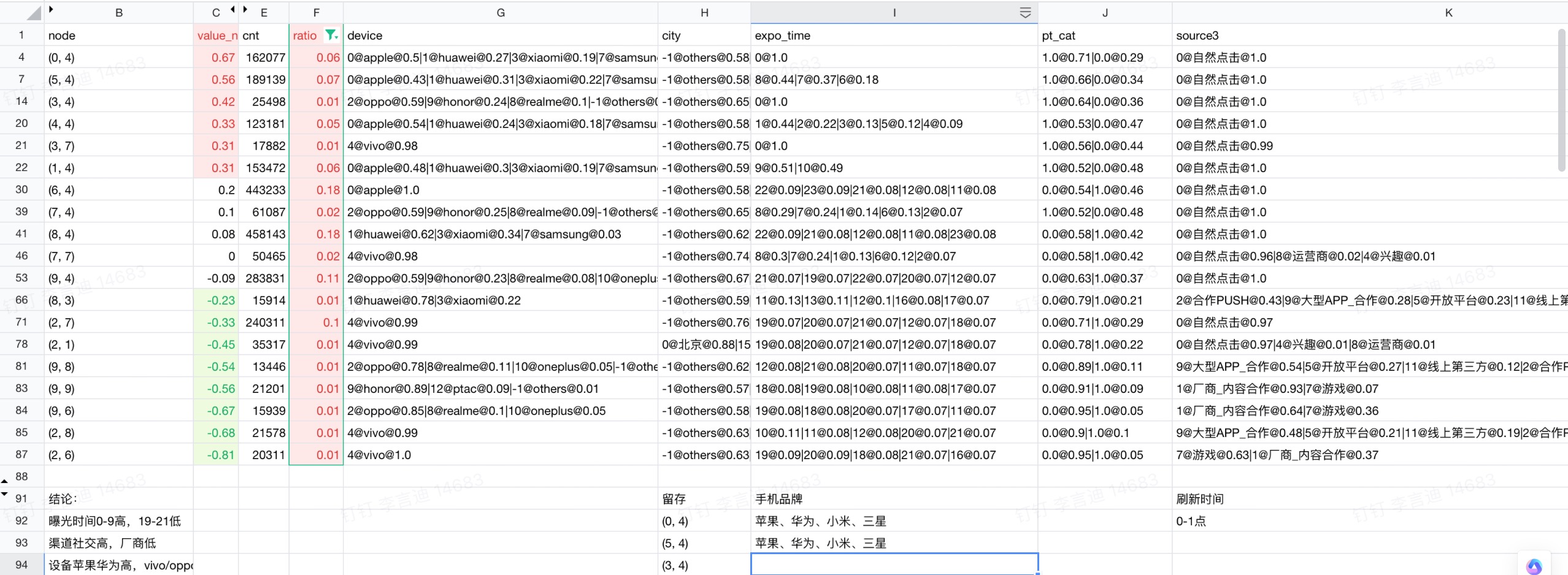

df.to_csv("../uncommitted/feature_stat_yandi.tsv", index=False, sep="\t")

df.to_csv("../uncommitted/feature_stat_yandi.tsv", index=False, sep="\t")

5. 分析结论¶
